Alfa Test je regionalni partner za GOEPEL u Rumuniji, Bugarskoj, Srbiji, Hrvatskoj, Sloveniji, Bosni i Hercegovini, Moldaviji i Ukrajini. Sa GOEPEL electronic, sarađujemo sa preko 30 godina iskustva u Embedded JTAG rešenjima i Boundary Scan tehnologijama. Ova saradnja obezbeđuje pristup svetski priznatim test rešenjima potkrepljenim snažnim tehničkim znanjem Alfa Test-a, brzom lokalnom podrškom i posvećenošću kvalitetu i inovacijama – bilo da se radi o razvoju složenih štampanih ploča, testiranju sklopova visoke gustine ili skaliranju proizvodnje.
Goepel sistemi i tehnologije se razvijaju i proizvode u glavnoj lokaciji u Jeni u Nemačkoj. Oznaka „Made in Germany“ prevazilazi nacionalne granice. Sa više od 240 zaposlenih, podružnicama u SAD, Kini i Indiji i globalnom servisnom mrežom, GOEPEL Electronic je uvek blizu svojih kupaca.

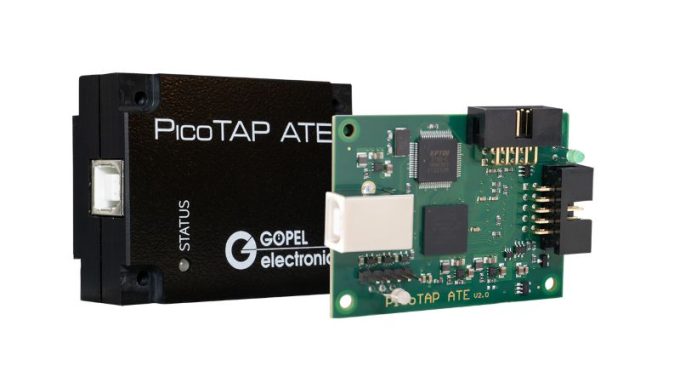

PicoTAP is an ultra-compact, USB-powered boundary scan controller ideal for entry-level, service, and field applications.
Key Technical Parameters:
• TAPs: 1 (single)
• Max Scan Frequency: 15 MHz
• I/O Voltage: Programmable 1.65–3.6 V
• Interface: USB 2.0
• Form Factor: USB stick design
• Compatibility: Fully integrated with CASCON software

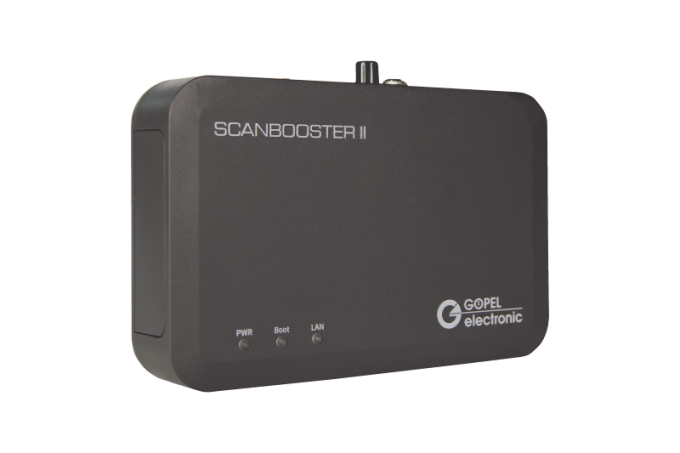

SCANBOOSTER II is a compact USB boundary scan controller designed for R&D, validation, and production purposes.
Key Technical Parameters:
• TAPs: 2 independent, fully programmable
• Max Scan Frequency: 16 MHz
• I/O: 32-channel Multi-Purpose Programmable (MPP) I/O, 1.8–3.3 V (4 groups)
• Interface: USB 3.0
• Extension: Supports TIC/TEM adapters, fixture and FXT module integration
• Form Factor: Compact desktop unit, ideal for portable and flexible use

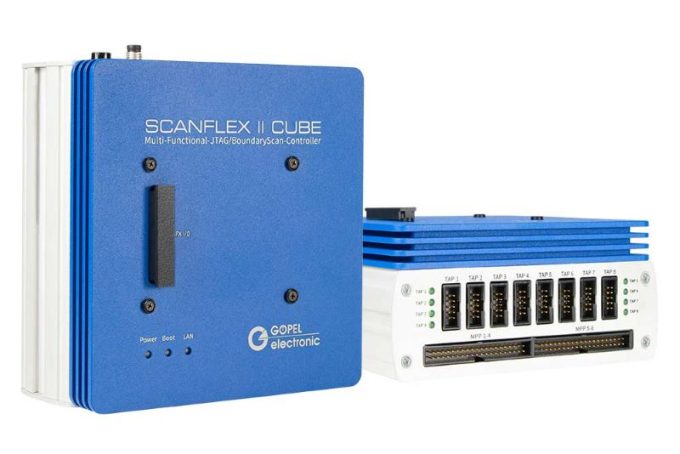

SCANFLEX II CUBE (A/B/C) is a modular, high-performance boundary scan controller for laboratory and production test environments.
Key Technical Parameters:
- TAPs: Up to 8 (fully programmable)
- Max Scan Frequency:
- CUBE A: 20 MHz
- CUBE B: 50 MHz
- CUBE C: 100 MHz
- Module Slots: 8 expansion slots for I/O modules
- Voltage Range: Programmable per TAP (1.2–3.6 V)
- Interfaces: USB 3.0, Gigabit Ethernet.
- Features: Scan Data Buffer (A), SPACE III architecture (B), FASTSCALE™ engine (C)
- Expansion: Compatible with full range of SCANFLEX II digital, analog, and high-speed modules

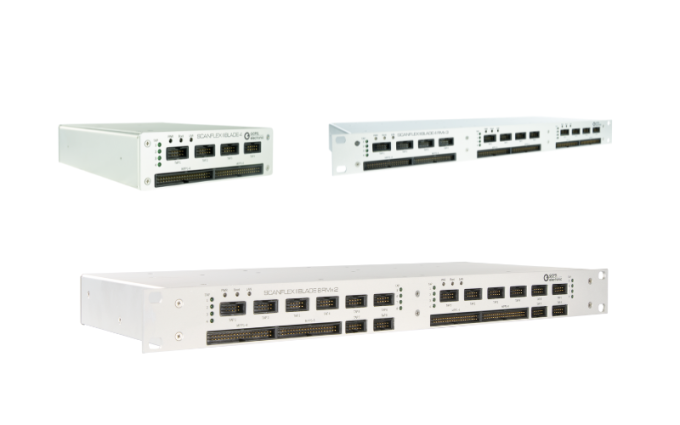

SCANFLEX II BLADE (A/B/C, RMx/8RM) is a modular, rack-mount boundary scan controller optimized for automated production and inline test systems.
Key Technical Parameters:
- TAPs: Up to 8 (fully programmable; model dependent)
- Max Scan Frequency:
- BLADE 4 A: 20 MHz, up to 4 TAPs
- BLADE 4 B: 50 MHz, up to 4 TAPs
- BLADE 4 C: 100 MHz, up to 4 TAPs
- BLADE 4 RM, up to 4 TAPs / BLADE 8 RM: up to 8 TAPs, up to 100 MHz
- Module Slots: 4 or 8 (model dependent)
- Voltage Range: Programmable per TAP (0.9–3.6 V)
- Interfaces: USB 3.0, Gigabit Ethernet
- Expansion: Supports digital, analog, relay, and high-speed I/O modules

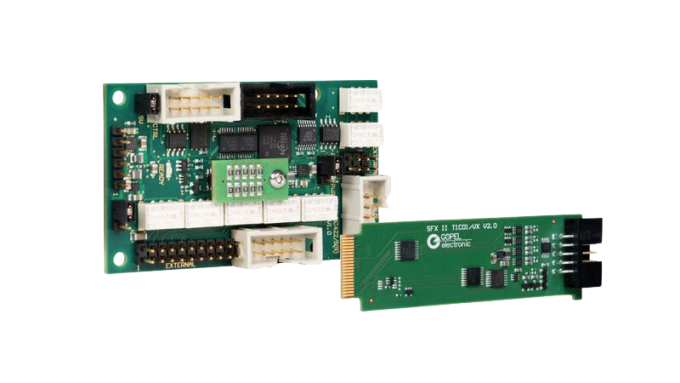

TIC (TAP Interface Card) modules connect SCANFLEX controllers to your DUT, offering programmable voltage and multi-protocol support (JTAG, SWD, SBW, BDM). TEM (TAP Extension Module) units extend and condition TAP signals for stable, high-speed operation –even in complex setups.
- TIC01/LX: 1 TAP, 0.9–3.6 V, JTAG/SWD/SBW/BDM.
- TIC01/VX: 1 TAP, 1.65–4.5 V, advanced protocols
- TIC120/LX: Multi-bus TAP, 0.9–3.6 V, broad protocol support
- TEM: TAP extension, buffering & conditioning
- TEM-ISO: TAP extension, galvanic isolation, up to 65 MHz

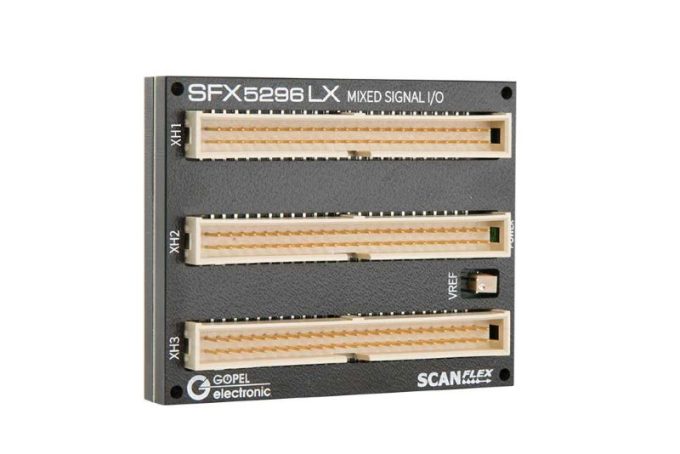

SFX Expansion Modules
SFX modules add flexible, high-speed digital and analog I/O to SCANFLEX platforms for boundary scan, functional test, and embedded programming. All are fixture-ready for seamless integration
- SFX-6308: 8 electronic loads, dynamic rail loading, current measurement.
- SFX-9305: 16 digital I/O, BAC slots for CAN, LIN, USB, RS232, Ethernet, etc.
BAC Modules for SFX-9305:
Plug-and-play bus adapters for protocol-specific testing:
USB 2.0 Host/Slave, RS232, RS422/485, CAN (HS/LS), LIN, 10/100/1000 Ethernet

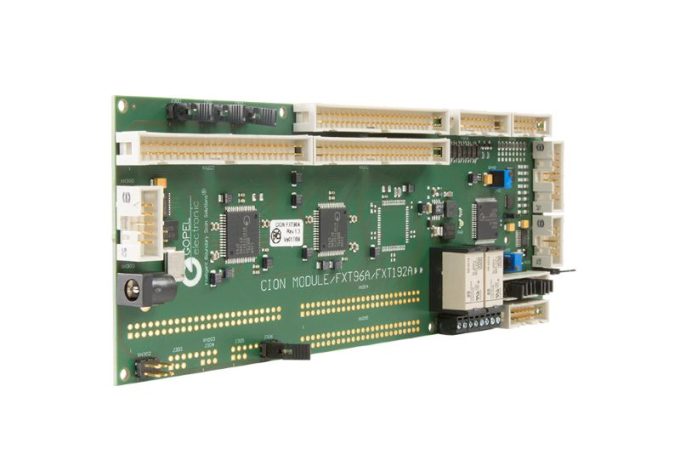

CION modules deliver high-density, programmable digital I/O for boundary scan and functional test – ideal for conventional assemblies and standard-speed applications.
CION-LX Modules
CION-LX Modules deliver all the benefits of CION Modules, but add enhanced signal integrity, higher-speed performance, and advanced timing features. They are specifically designed for demanding, high-speed digital test environments that require superior accuracy and reliability beyond the capabilities of standard CION Modules.
- CION-LX FXT32 / FXT48 / FXT96 / FXT192
High-speed, advanced timing, 32–192 channels

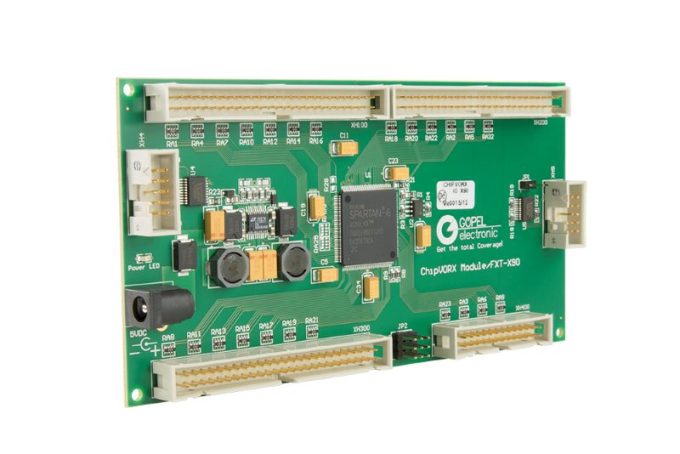

ChipVORX modules embed instrument IP in FPGAs/CPLDs for on-chip test, programming, and protocol emulation—no extra hardware required. Connect via TAP to access internal FPGA resources as digital test channels
Key Capabilities:
- High-speed flash programming, DDR SDRAM access
- Protocol emulation: PCIe, USB, SATA, Ethernet
- Built-in logic analyzer, pattern generator, BERT, frequency meter, ADC/DAC
- Easy, software-only configuration—no FPGA design required
Models:
ChipVORX Accessories
Expand connectivity and test options for ChipVORX modules:
- PCIe x1 Adapter: Direct PCI Express connection
- AdaptX PCIe x1 Adapter: For AdaptX X32 modules
- SATA Adapter: At-speed storage and protocol test
- Gbit LAN Adapter: Gigabit Ethernet/network testing
All CASCON TS (Production Test Station) editions include:
CASCON API:
Standard API access for integration with production systems, automation, and data exchange.
Project Unpacking & Execution:
Ability to unpack CASCON project archives and execute compiled CASCON applications for streamlined test deployment on the production line.
Advanced Test Vector Browser:
Visualization and review of test vectors for detailed test coverage and failure analysis.
All development editions offer Diagnostics/Repair features. The differences between them are as follows:
The feature set is flexibly configurable according to specific customer requirements.
Contact us for guidance on GOEPEL’s CASCON system and help selecting the right edition for your application.
